CARGO SPECTRE PALLET DIMENSIONERS

Cargo Spectre uses 3D scanning technology to accurately capture the precise dimensions of every freight pallet moving in or out of your warehouse. Our affordable, adaptable hardware can be configured for freight of any shape or size. No matter your budget or your footprint, we have a customized pallet dimensioning solution for you.

Cargo Spectre provides flexible, affordable warehouse data systems for pallet freight around the world. Offering NTEP-certified weights and measures, Cargo Spectre’s software can be integrated with any backend or cloud-hosted application and can be installed in less than an hour. Pallet lips, broken running boards, and even personnel in view of the system will not affect Cargo Spectre’s ability to deliver a max cube every time. Each pallet dimensioner is capable of dimensioning, weighing, and photographing any pallet or object in seconds.

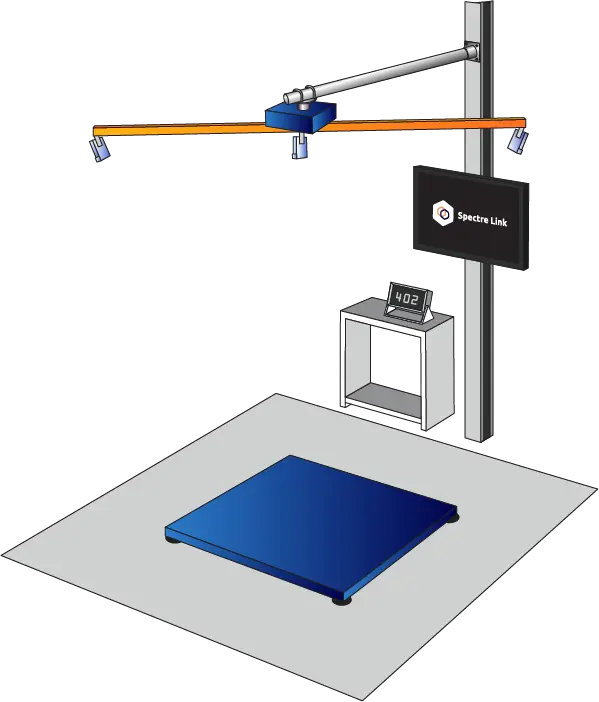

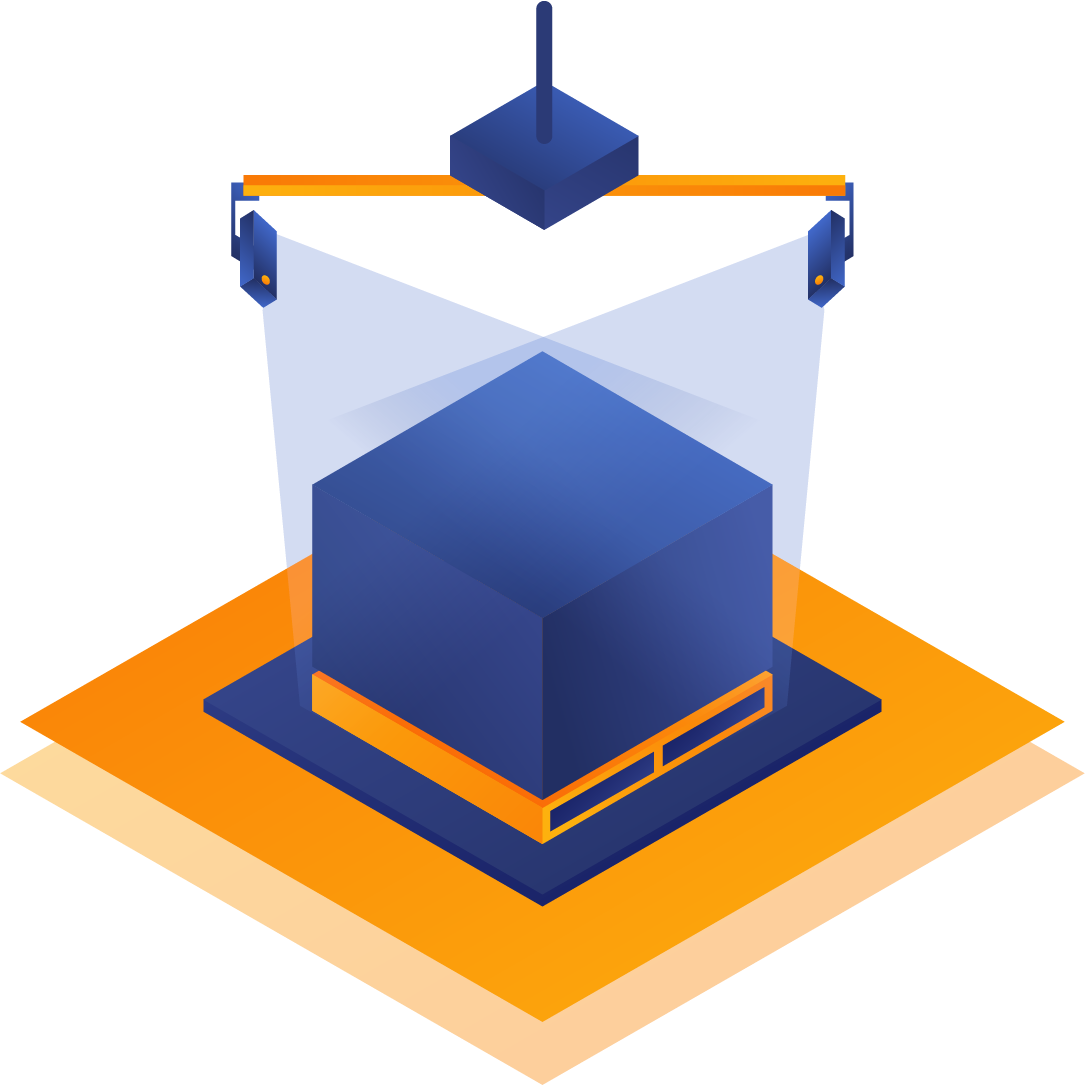

illustration of Pallet Spectre

OUR HARDWARE

TECHNICAL SPECS

NTEP-certified weights and dimensions

Pallet Standard

Dimensions

Accuracy
+ or – 0.5 inches of accuracy
Max size154″ x 151″ x 134″
Min size0.5” x 0.5” x 0.5′′
Optimum mounting height13 feet
Throughput speed
300 scans/hour (pictures, weights, dimensions)

Commonly Scanned Items

Standard Pallets – 40” x 48” (1,000cm × 1,200cm)
Barrels

Pallet XL

Dimensions

Accuracy
+ or – 0.5 inches of accuracy
Max size266″ x 151″ x 134″
Min size0.5” x 0.5” x 0.5′′
Optimum mounting height13 feet
Throughput speed
300 scans/hour (pictures, weights, dimensions)

Commonly Scanned Items

Aircraft ULDs
Prac Pallets
20 ft Pipes

OUR SOFTWARE

What makes Cargo Spectre more advanced and user-friendly than our competitors? Our proprietary dimensioning software. Our thoroughly tested machine-learning software is accurate to .5 inches and is able to automatically recognize unwanted objects and filter them out from the freight being dimensioned. Because our systems worldwide have been exposed to incredible amounts of cargo data, our system can recognize and filter people, poles, forklifts, and much more—and it gets smarter every day.

Included in your service package is access to our API libraries, Spectre Hub for managing your devices and data, and Spectre Link for remotely controlling your systems and driving your operation.

Cargo Spectre System Chain
Spectre Link interface
SpectreLink

Spectre Link



Cargo Spectre’s easy-to-use Spectre Link app connects every device in your warehouse. Use it to control Cargo Spectre systems from any device and link the data to the cloud or your database or ERP of choice.

Spectre Hub Software interface
SpectreHub

Spectre HUB



Spectre Hub is a cloud storage and analytics solution that gives Cargo Spectre clients a management-level overview of all freight scanned by their organization’s dimensioners. Users can monitor aggregated freight data in any warehouse from any internet connection in the world.

A WEALTH OF DATA IN EVERY SCAN

Each scan documents a pallet’s length, width, and height, along with volume, density, and other valuable NTEP-certified data.

NTEP-certified pallet dimensions, including length, width, and height.

A certified freight report including images, dimensions, and weight for disputing reclassification fees.

3D point cloud mapping all angles of the scanned pallet.

Multiple photos of the pallet from different angles.

Throughput analytics for increasing warehouse efficiency.

illustration of pallet dimensioner

OUR INTEGRATION PARTNERS

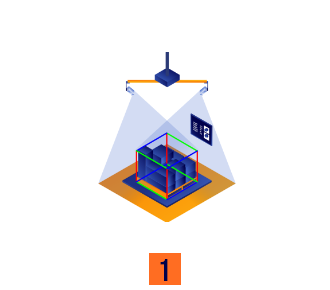

HOW DOES A CARGO SPECTRE PALLET DIMENSIONER WORK ?

illustration of pallet dimensioner

USER PUTS FREIGHT UNDER THE SYSTEM.

Filtering will ignore unwanted objects and personnel in view of the sensors.

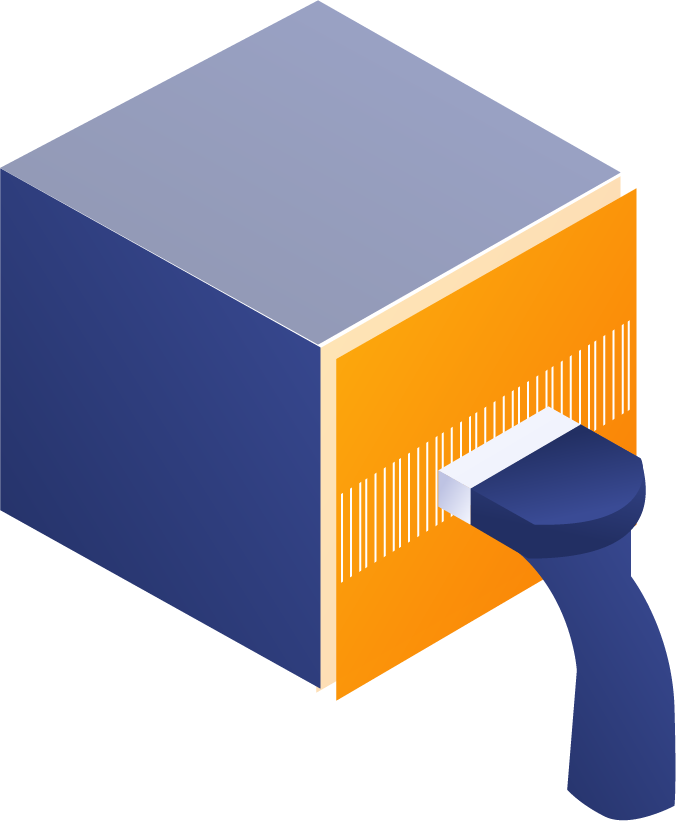

BARCODE IS SCANNED USING Handheld scanner or auto bar code readers.

Cargo Spectre offers a variety of automated and manual scan-triggering options.

illustration Barcode scanner
Desktop with Cargo spectre software

SCAN IS AUTOMATICALLY OR REMOTELY ENGAGED.

Automatically start scanning after a barcode is read, a timer goes off, or the system is manually engaged.

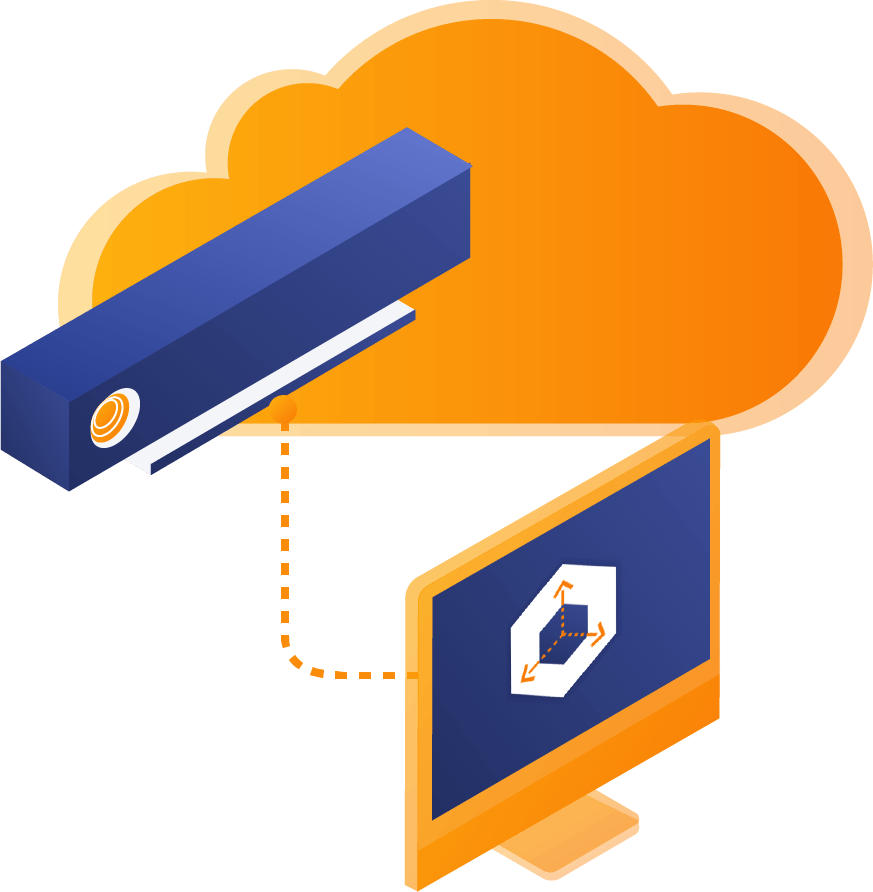

RESULTS AND ANALYTICS ARE STORED.

Scan data is automatically saved in the cloud or the database of your choice.

database cargo spectre software

RESULTS AND ANALYTICS ARE STORED.

Scan data is automatically saved in the cloud or the database of your choice.

PALLET DIMENSIONER TRIGGERING OPTIONS

graphic svg tablet phone desktop

Use Our App

Our app, Spectre Link, remotely triggers scans to your dimensioning hardware and sends the data in any format to the database of your choosing.

graphic svg gear

Integrate With Our API

Use your own in-house UI to interact with your dimensioning hardware using our APIs.


graphic svg barcode

Use a Barcode Scanner

Both methods can use either a user driven bar code reading or passive bar code reading “self checkout”. You are in control of the user experience and hardware and we are here to help!
